Looking for something you can't find? Not sure which product best fits your needs? Call us at 800-619-4737 or email us with your special needs at info@qnsdistributors.com

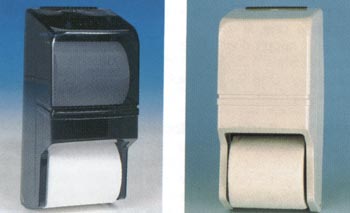

U845 Surface Mounted Reserve-A-Roll Dispenser

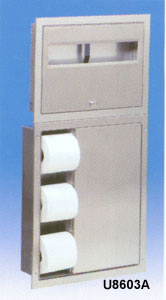

U860/U8603A Recessed Toilet Seat Cover, Toilet Tissue Dispenser and Sanitary Napkin Disposal

U8603** Napkin disposal is located below push panel and is removable for servicing. Spring loaded toilet paper dispenser accommodates all standard core rolls.
Overall size - 17 1/4 w x 32 3/4 h x 4 1/4 d
Wall Opening - 15 3/4 w x 31 1/4 h x 4 d
Capacity - 3 standard rolls, 500 seat covers, 2 gallon waste capacity
U8603A** without napkin disposal for men's room
S2 Option - Semi-recessed 2 inch skirt
SM Option - Surface Mounted full skirt

U860A-Recessed Toilet Seat Cover Dispenser and Toilet Tissue Dispenser. Same as U860, except napkin disposal and waste receptacle are blanked off for use in men's washrooms.

Model	Installation	QNS PRICE
U8603	Recessed	Call for Availability
U8603-S2	Semi-Recessed 2" skirt	Call for Availability
U8603-SM	Surface Mounted	Call for Availability
U8603A	Recessed	Call for Availability
U8603A-S2	Semi-Recessed 2" skirt	Call for Availability
U8603A-SM	Surface Mounted	Call for Availability
U860	Recessed	$261.00
U860-S2	Semi-Recessed 2" Skirt	$215.00
U860-SM	Surface Mounted	$292.45
U860A**	Recessed	$294.90
U860A-S2**	Semi-Recessed 2" Skirt	Call For Availability
U860A-SM	Surface Mounted	$318.25

---

Partition Mounted Toilet Seat Cover Dispenser, Toilet Tissue Dispenser and Sanitary Napkin Disposal

U8613** - Overall Size 17 1/4 w x 32 3/4 h x 4 1/4 d
Partition Opening 15 3/4 w x 31 1/4 h
Capacity per side - Toilet Tissue 3 standard rolls, 500 toilet seat covers, 2 gallon capacity waste receptacle
U8613A** - Same as above except napkin disposal is blanked off for use in mens washroom
U8613H** - Same as U8613 except one flange is flushed mounted to allow grab bar installation across the front of cabinet below toilet seat cover dispenser
U8613AH** Same as U8613A except one flange is flush mounted to allow grab bar installation

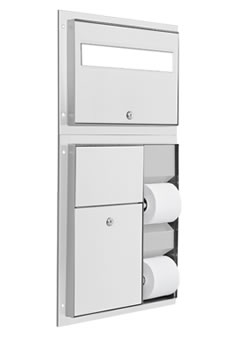

U861-Partition Mounted Toilet Seat Cover Dispenser, Toilet Tissue Dispenser and Sanitary Napkin Disposal.
Overall Size: 17-1/4"W x 32-3/4"H x 4-1/4"D
Partition Opening: 15-3/4"W x 31-1/4"H; adjustable for partitions, 1/2" to 1-1/4" in thickness.
Capacity per side: Toilet Tissue: 4 standard rolls, 5-1/2" O.D. max.
Toilet Seat Covers: 500 each side
Waste Capacity: 2 gallons
U861A-Partition Mounted Toilet Seat Cover Dispenser/Toilet Tissue Dispenser. Same as U861, except napkin disposal is blanked off for use in men's washrooms.
U861H–Same as the U861 except one flange is flush mounted to allow grab bar installation across the front of cabinet below toilet seat cover dispenser.
U861AH–Same as the U861A except one flange is flush mounted to allow grab bar installation.

*Units that are fabricated to accommodate grab bar installation, do not come with bar. Must be ordered separate.



Model	QNS PRICE
U8613**	Call for Availability
U8613A**	Call for Availability
U8613H**	Call for Availability
U8613AH	Call for Availability
U861	$330.50
U861A	$275.70
U861H	$330.50
U861AH	$275.70

---

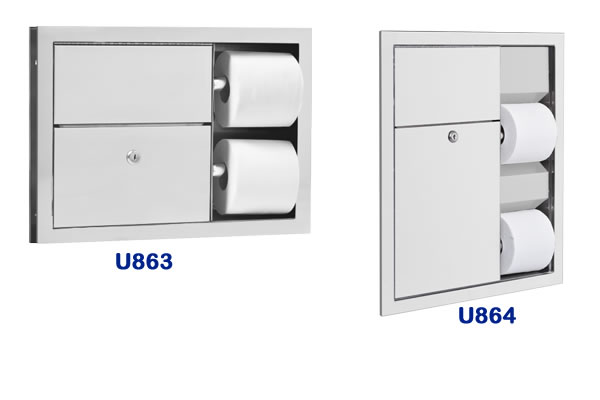

U864 - Recessed Overall size - 17 1/4 w x 20 h x 4 1/4 d
Wall Opening - 15 3/4 w x 18 1/2 h x 4 d
Capacity - 2 standard rolls per side, 2 gallon waste capacity
SM Option - Surface Mounted full skirt

U863 - Partition Mounted
U864A** -- Same as above without Sanitary Napkin Disposal

Model	QNS PRICE
U8643**	Call for Availability
U8643-SM**	Call for Availability
U864	$213.80
U864-S2	$149.30
U864-SM	$165.05
U864A	$172.90
U864A-S2	$219.95
U864A-SM	$224.85
U863	$259.30

---

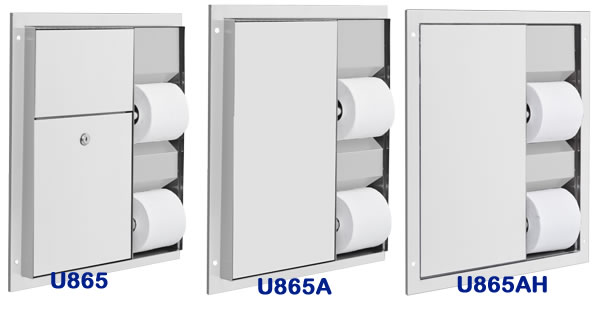

Partition Mounted Dual Roll Toilet Tissue Dispenser and Sanitary Napkin Disposal

U8653** - Overall Size 17 1/4 w x 20 h x 4 1/4 d
Partition Opening - 15 3/4 w x 18 1/2 h
Capacity 3 standard rolls per side, 2 gallon waste capacity
A Option - Napkin disposal is blanked off for installation in men's room
H Option - One flange is flush mounted to allow grab bar installation
U865 - Same as above with 2 roll standard rolls

U850 Recessed Toilet Seat Cover Dispenser

500 single or half fold seat covers
Overall size 17 1/4 w x 12 3/4 h x 2 5/8 d
Wall Opening 15 3/4 w x 11 1/4 h x 2 3/8 d

Model	QNS PRICE
U850	$64.40
U850-SM	$92.15
U8504	$111.85
U8504-SM	$144.40

U851 Surface Mounted Toilet Seat Cover Dispenser

---

**Special Order Item - Call QNS for accurate price and availability
For size and spec cut sheet, click here.
Click the photo of the model in which you are interested to find the link to the Technical Data Sheet
