A & J Washroom Accessories
Grab Bars

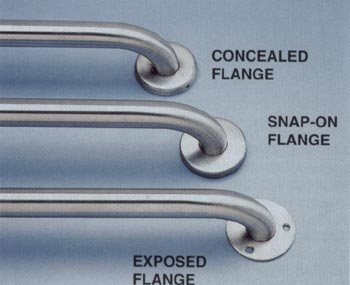

UG2 - Grab Bar - Snap-On Flange

Tubing - Type 304 #18 gauge stainless steel with O.D. of 1 1/4 in. #4 Satin Finish Standard. Bar Offset - 1 1/2 in clearance between the mounting surface and inside of bar to meet Federal Specification WW-P-541/8b. Concealed Snap Flange - 3 in O.D. deep drawn type 304 #22 gauge #4 satin finish stainless. #14 gauge stainless steel mounting plate is heliarc welded to bar with three mounting points.

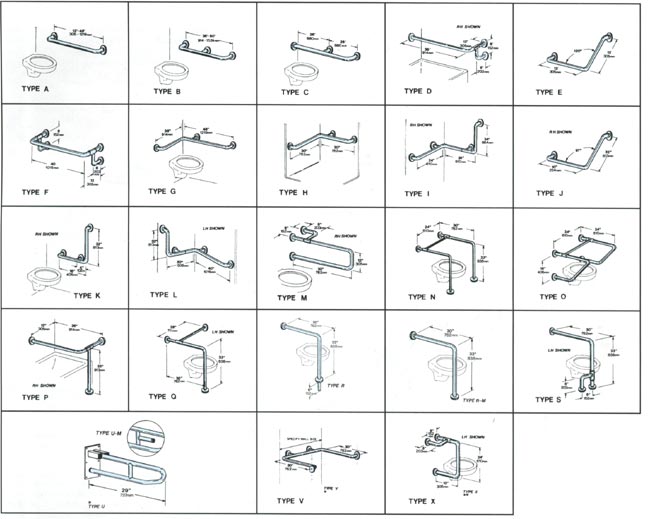

A Option - bar attached to wall on both ends
B Option - bar attached to wall on both ends and middle.

Model	Size - Type	QNS PRICE
UG2A-12	12 inch - Type A	$21.15
UG2A-16	16 inch - Type A	$22.80
UG2A-18	18 inch - Type A	$22.40
UG2A-24	24 inch - Type A	$23.60
UG2A-30	30 inch - Type A	$25.10
UG2A-32	32 inch - Type A	$25.85
UG2A-36	36 inch - Type A	$26.30
UG2A-42	42 inch - Type A	$27.55
UG2A-48	48 inch - Type A	$28.75
UG2B-48**	48 inch - Type B	Call For Availability
UG2B-54**	54 inch - Type B	Call For Availability
UG2B-60	60 inch - Type B	$59.75
UG2B-72	72 inch - Type B	$64.45

Looking for something you can't find? Not sure which product best fits your needs? Call us at 800-619-4737 or email us with your special needs at info@qnsdistributors.com

UG20 Grab Bar - Concealed Set Screw

Tubing - Type 304 #18 gauge stainless steel with O.D. of 1 1/4 in. #4 Satin Finish Standard. Bar Offset - 1 1/2 in clearance between the mounting surface and inside of bar to meet Federal Specification WW-P-541/8b. Concealed Set Screw 3 inch O.D. deep drawn type 304 #11 gauge #4 satin finish stainless steel.#12 gauge pre-plated steel tenion plate. Flange is secured to plate by means of four 1/4 inch - 20 stainless steel tamper resistant set screw.
A Option - Attached to the wall on both ends.
B Option - Attached to the wall on both ends and middle.

Model	Size - Type	QNS PRICE
UG20A-12	12 inch - Type A	$24.35
UG20A-16	16 inch - Type A	$25.85
UG20A-18	18 inch - Type A	$25.85
UG20A-24	24 inch - Type A	$28.05
UG20A-30	30 inch - Type A	$30.50
UG20A-32	32 inch - Type A	$32.60
UG20A-36	36 inch - Type A	$32.95
UG20A-42	42 inch - Type A	$35.65
UG20A-48	48 inch - Type A	$38.10
UG20B-48**	48 inch - Type B	Call For Availability
UG20B-54**	54 inch - Type B	Call For Availability
UG20B-60	60 inch - Type B	$63.90
UG20B-72	72 inch - Type B	$68.95

UG120 Grab Bar - Exposed Flange

Tubing - Type 304 #18 gauge stainless steel with O.D. of 1 1/4 in. #4 Satin Finish Standard. Bar Offset - 1 1/2 in clearance between the mounting surface and inside of bar to meet Federal Specification WW-P-541/8b. Exposed 3 inch O.D. type 304 #11 gauge #4 satin finish stainless steel with three countersunk mounting points for 1/4 inch dia fasteners. Flange is heliarc welded to form one-piece construction.
A Option - bar attached to wall on both ends
B Option - bar attached to wall on both ends and middle.

Model	Size - Type	QNS PRICE
UG120A-12	12 inch - Type A	$19.95
UG120A-16	16 inch - Type A	$20.90
UG120A-18	18 inch - Type A	$20.90
UG120A-24	24 inch - Type A	$22.40
UG120A-30	30 inch - Type A	$23.35
UG120A-32	32 inch - Type A	$24.60
UG120A-36	36 inch - Type A	$24.60
UG120A-42	42 inch - Type A	$27.55
UG120A-48	48 inch - Type A	$28.55
UG120B-48**	48 inch - Type B	Call For Availability
UG120B-54**	54 inch - Type B	Call For Availability
UG120B-60	60 inch - Type B	$45.60
UG120B-72	72 inch - Type B	$48.75

For size and spec cut sheet, click here.
Click the photo of the model in which you are interested to find the link to the Technical Data Sheet

A & J Washroom Accessories carries a complete line of architectural and janitorial washroom accessories. Our soap dispensers can be surface mounted or recessed and can use liquid, lather or powder soap. Paper towel dispensers can handle C-Fold, Multifold or Roll . We carry Jetair electric hand dryers with brushless motors, adjustable or automatic timers and adjustable depth of field sensors. A & J also carries a complete line of waste receptacles, ashtrays, tilt mirrors and cabinets, toilet tissue dispensers, shelves, shower seats, grab bars and other janitorial, bath and security accessories.
